A VERSATILE MACHINE WITH
UNCONVENTIONAL MOBILITY®

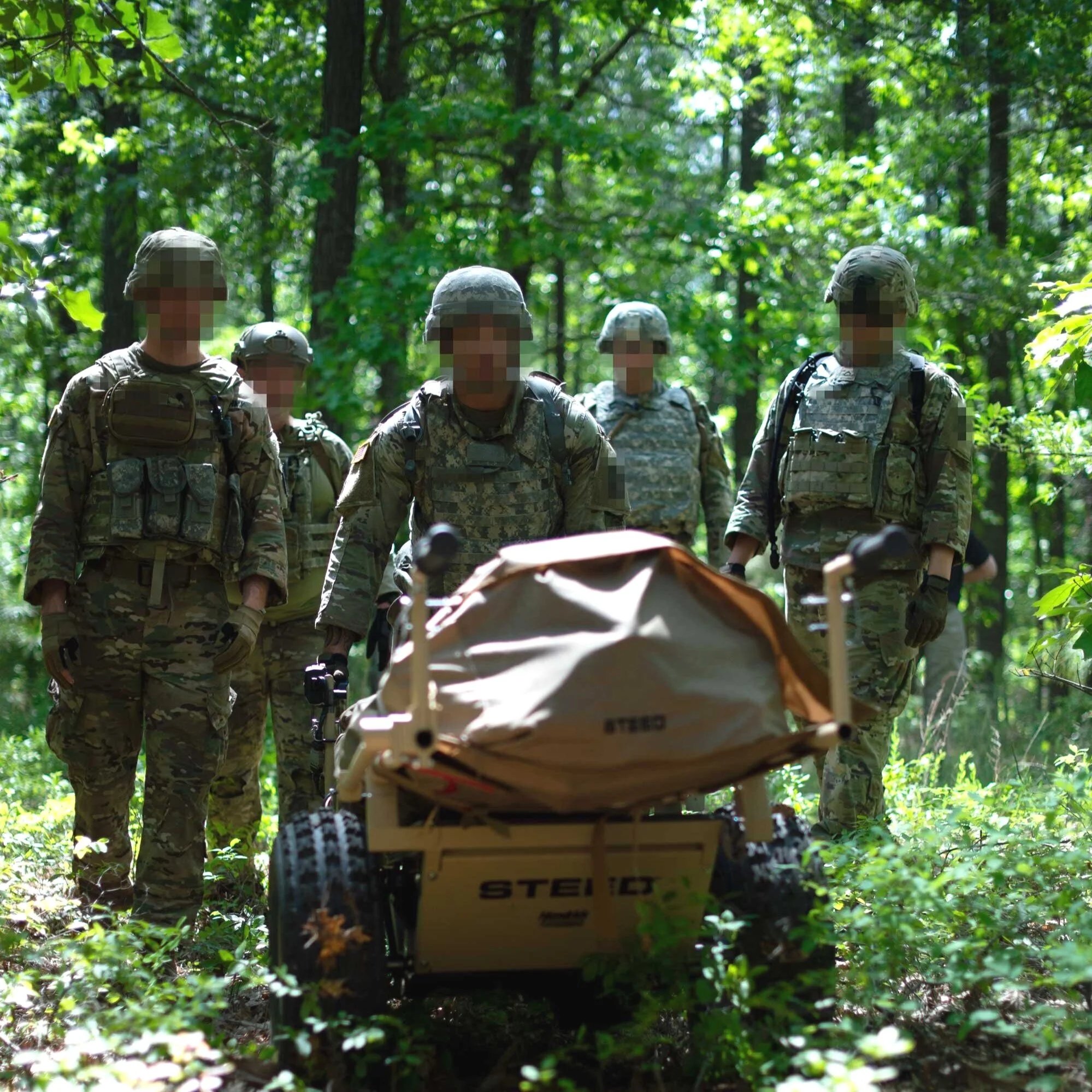

Designed to Endure.
STEED was developed to meet mission specific requirements and was selected from multiple solutions tested. STEED was developed through a phased process with direct integration from end users.

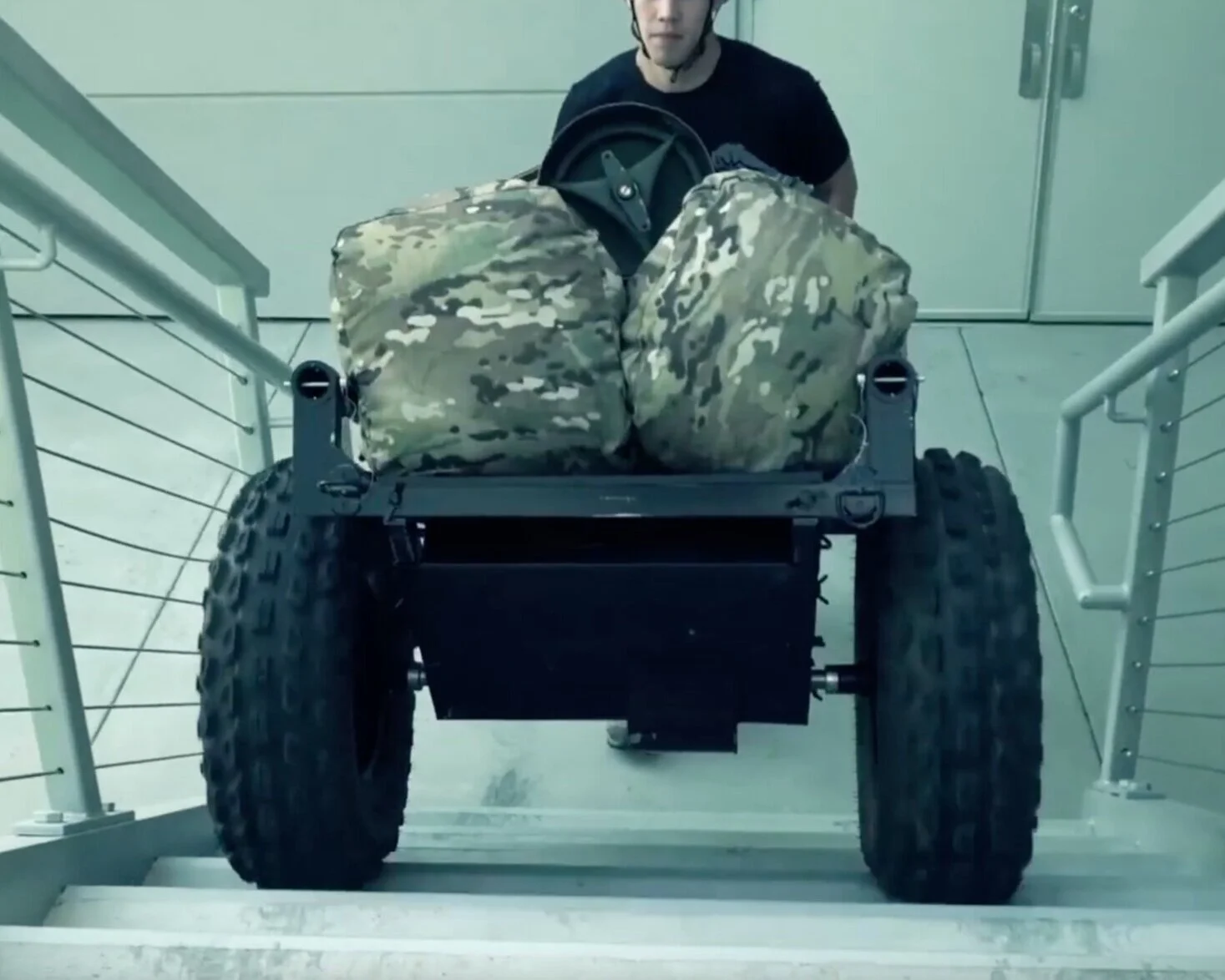

Performance
Curb weight: 190 lbs. (86.2 kg)
Payload: Up to 500 lbs. (226.8 kg)
Range: 15-30 miles (24-48 km) on one battery pack
Drive: Forward and reverse
Speed: Variable up to 6.5 mph (10.4 km/h)
Control: Single operator, thumb throttle
Immersion: Fully Submersible (IP67 level)
Power
Motor: 1500W electric, zero emissions, fully submersible, tactically silent
Batteries: (2) 12V batteries, 24V system
Lithium-ion: LiFePO4, COTs available
Charging: 2 to 4 hours. External secondary battery pack. Connects to Squad Power Manager (SPM) to import/export power.
Towable: Free-wheel mode allows for towing

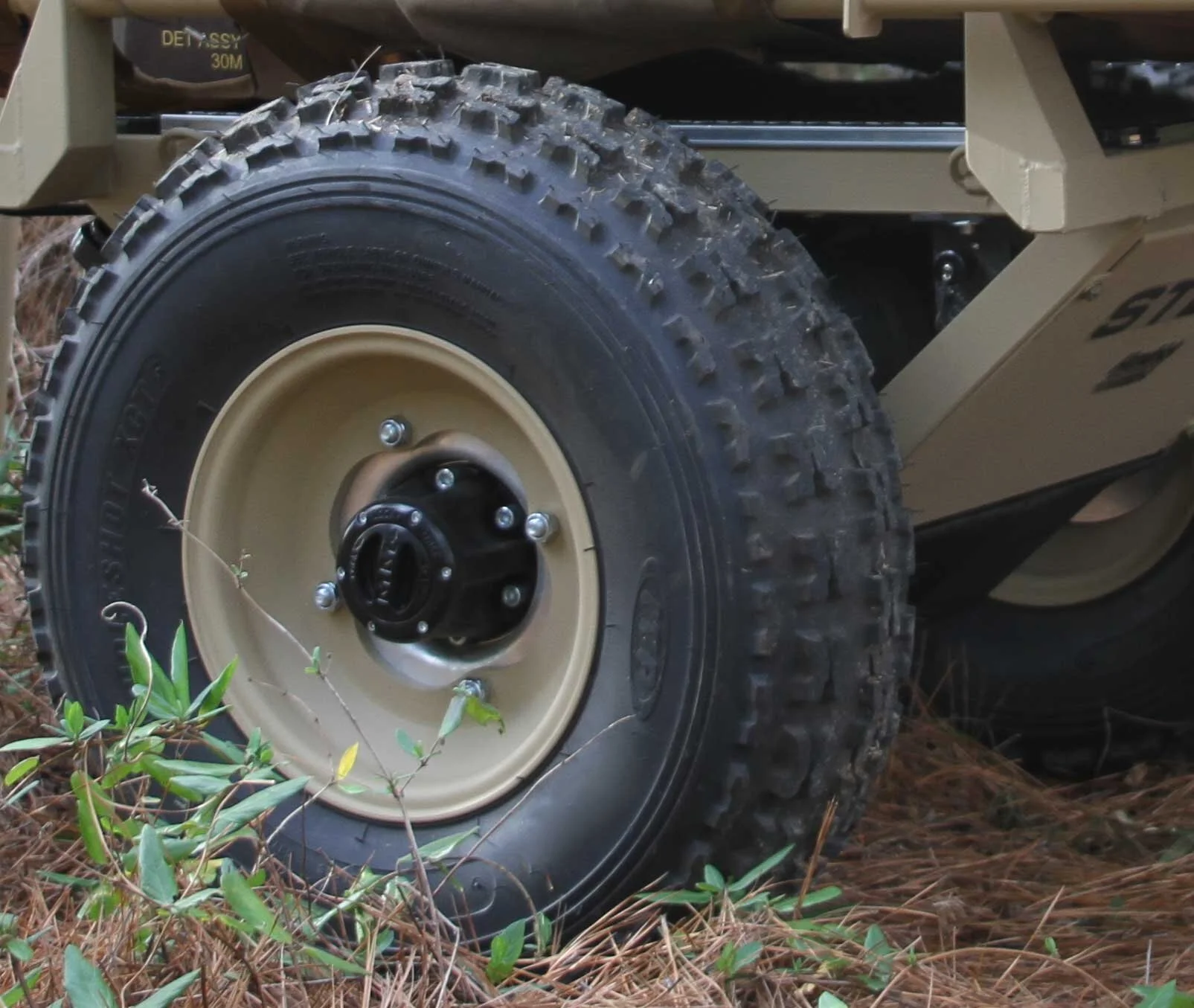

Tires & Wheels
Tire: 4 ply (standard option)
Tire Size: 23 x 7 x 10
Wheel: Aluminum
Wheel Size: 10 x 5 with a 4 x 156mm bolt pattern
Options: Runflat and sand
Dimensions
Collapsed form, fits in rotomolded transport case:
30” x 39” x 25” (76.2 x 99.1 x 63.5 cm)Dual handle, fully extended form:
93” x 39” x 33-37” (236.2 x 99.1 x 83.8-94 cm)Single-handle, short form:
62” x 39” x 33-37” (157.5 x 99.1 x 83.8-94 cm)

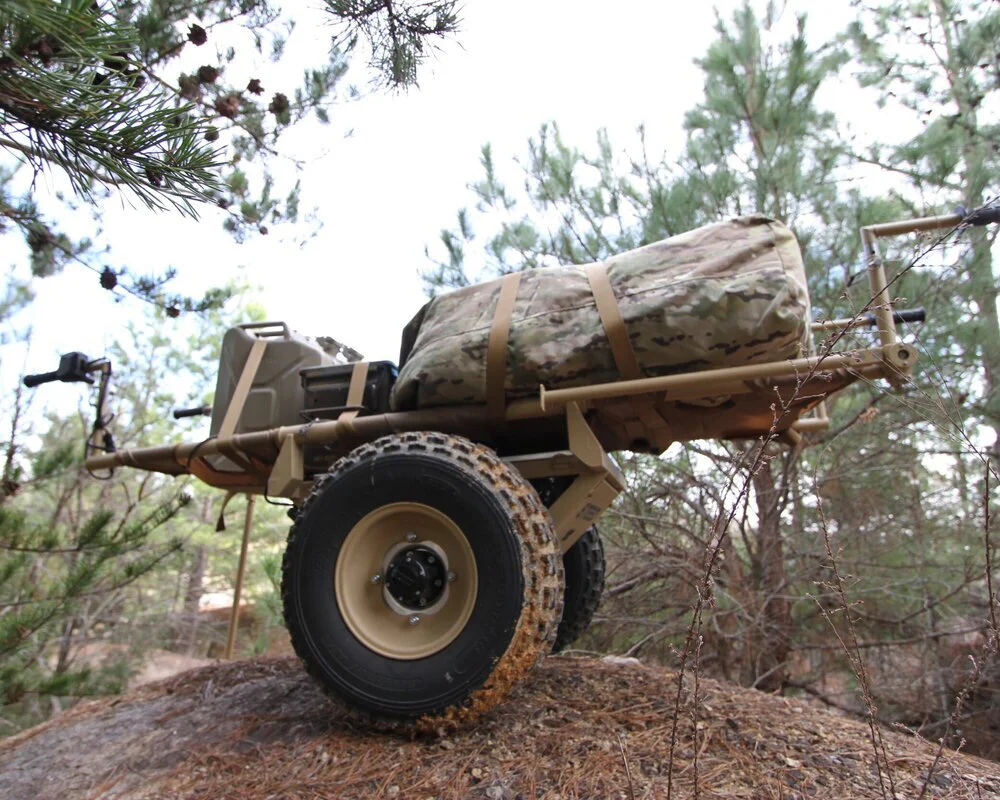

Form Factor
Material: Lightweight steel alloy with carbon composite components
Adjustable handle height for operator comfort
Payload deck: Payload cloth with internal cargo bag, compatible with TALON litter; D-rings for additional payload securing and ability to hoist or sling load; L-track for universal attachment points
Customized payload attachments available
Transportable
Vehicle/aircraft carry: Only payload capable mobility platform that fits in UH-60, aisle of LMTV fully loaded with troops, roll-on/off Hilux truck bed, MRZR rear cargo areas, attachable to Stryker exterior bustle racks
Air deployable: Fits out parachute door in transport case
Shipping: Rotomolded transport case, fits on NATO standard 40” x 48” (101.6-121.9 cm) pallet
